Title: Prototype Overview: SG-Consciousness Resonator

Abstract:
The SG-Consciousness Resonator is a novel quantum experimental platform designed to probe interactions between subquantum lattice structures and biological consciousness. Based on the theoretical framework of the BSM-SG (Basic Structures of Matter - Supergravitation) model, this prototype integrates coherent infrared stimulation, lattice-active crystals, and resonant feedback monitoring. It is intended as a hardware testbed to investigate resonance phenomena involving consciousness fields and vacuum structures.

1. Introduction

The BSM-SG theory introduces a structured vacuum model known as the Cosmic Lattice (CL), where elementary particles and space-time geometry emerge from the dynamics of supergravitational nodes and subquantum interactions. A central implication of the model is the coupling between coherent physical structures (e.g., matter lattices, photonic fields) and non-local consciousness fields embedded in this lattice.

To explore this hypothesis experimentally, we developed the SG-Consciousness Resonator (SG-CR), a compact optical-microwave-electromagnetic system centered on stimulated transitions within a Yb:YAG crystal monitored via InGaAs photodetectors and DAQ instrumentation.

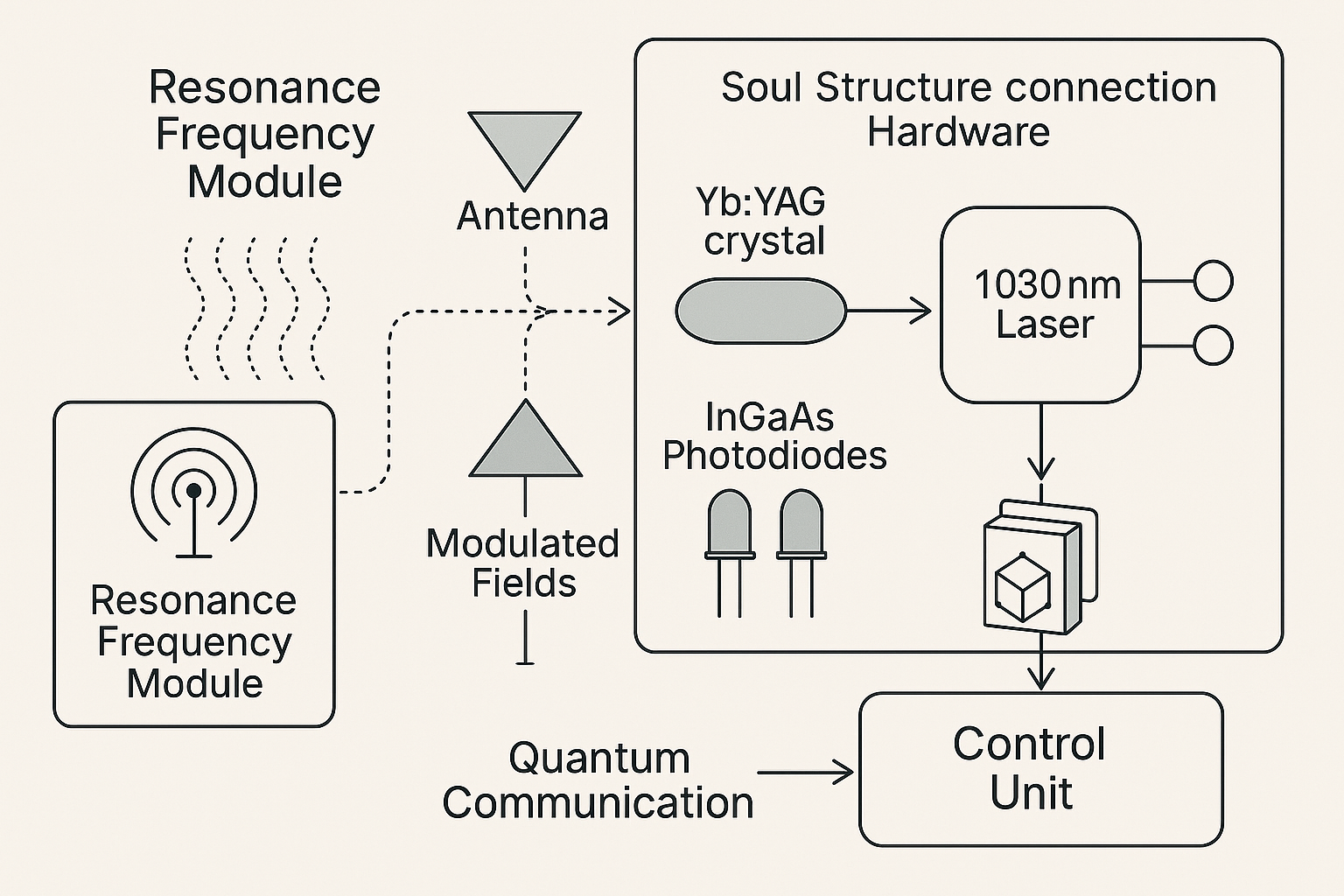

2. Core Components

  • Laser Excitation Unit:
    A focusable 1030 nm, 2 W IR laser is directed toward a Yb:YAG crystal at a calibrated distance (3–5 cm). This laser frequency corresponds to transitions in the crystal's sublattice structure, aligned with resonance predictions from BSM-SG geometry.
  • Yb:YAG Crystal on TEC Cooling Stage:
    A high-purity Ytterbium-doped YAG crystal (5x5x1 mm) is thermally stabilized via a Peltier cooler and heat sink assembly. The crystal is placed horizontally to maximize photonic coupling and field homogeneity.
  • InGaAs Photodiode Monitoring:
    An InGaAs photodiode is placed 1–2 cm above the crystal to detect emissions or field-induced transitions. It is connected to a National Instruments DAQ (NI USB-6009), which logs analog voltage variations correlated with experimental parameters.
  • Microwave Field Generator:
    An ADF5355-based wideband microwave generator injects controllable frequencies in the 4–13 GHz range via RFA+ output, optionally coupled to a mini antenna or loop coil directed at the crystal surface.
  • Static Magnetic Field (Optional):
    Neodymium magnets or adjustable electromagnets can be introduced to provide an axial static field across the crystal, aligning with theoretical BSM-SG vector harmonics.

3. Experimental Control

  • Software:
    The system is initially operated via LabVIEW for real-time acquisition and TTL control of lasers and field generators. Subsequent integration with FPGA platforms is foreseen.
  • Triggering:
    TTL signals from the DAQ card (P0.x) are routed to the laser driver, microwave module, and magnetic controller to ensure synchronized stimulation.

4. Objectives and Hypotheses

The SG-CR aims to test whether:

  • Specific combinations of IR, microwave, and magnetic fields produce non-thermal transitions in the crystal.
  • Patterns in photonic emission correlate with mental focus or nearby neural activity (Kirilian-type effects).
  • BSM-SG-predicted lattice modulation yields distinct, repeatable optical or electrical signatures.

5. Applications and Future Work

This prototype has potential implications for:

  • Advanced consciousness-matter interface studies
  • Novel quantum sensing architectures
  • Exploration of vacuum-based communication channels

Further experiments will include integration with EEG monitoring, real-time feedback loops, and 3D lattice simulations.

Conclusion

The SG-Consciousness Resonator is a pioneering attempt to engineer a laboratory interface with the subquantum structure of the vacuum. Grounded in the BSM-SG theory, it offers a new pathway for experimental validation of consciousness-lattice interactions and aims to stimulate interdisciplinary dialogue in physics, neuroscience, and metaphysics.
